ACE: AUTOMATION, CONTROL, ENHANCEMENT HARDWARE AND SOFTWARE PLATFORM FOR CUSTOM-BUILT X-RAY SYSTEMS
ACE-OF-DIAMONDS
...or ACE-Dynamic: proprietary algorithm of X-Ray fluoroscopy scene processing

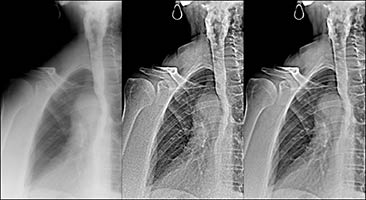

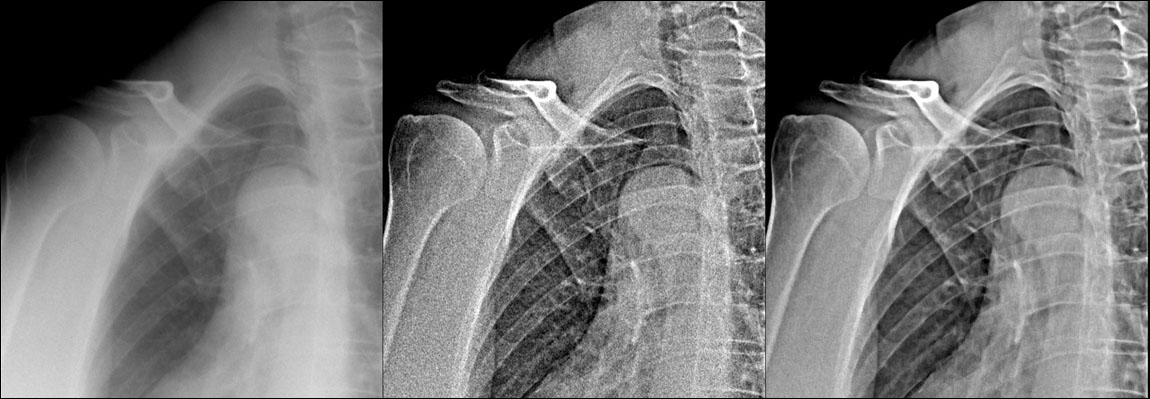

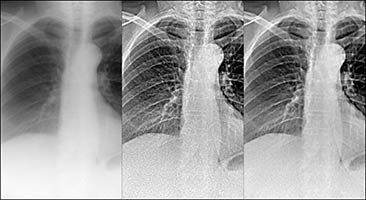

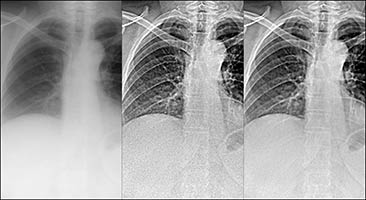

Fluoroscopy study containing posteroanterior view of the human thorax. Initial frame rate was reduced to 4FPS for more detailed display and method quality evaluation. Left to right: trivial processing (the logarithm of attenuation), per-frame dynamic contrast (ACE-S applied independently to each coming frame), ACE-D processing.
SEE FULL-SIZE SCREENSHOTS:

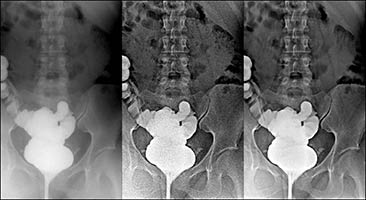

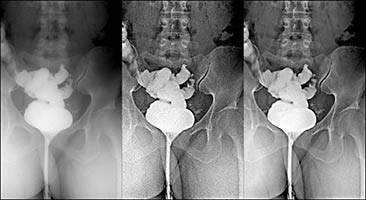

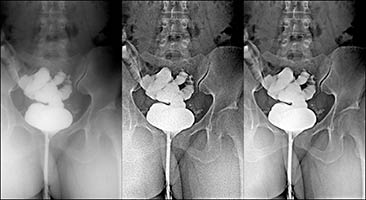

Fluoroscopy contrast study containing posteroanterior view of the human pelvis. Initial frame rate was reduced to 4FPS for more detailed display and method quality evaluation. Left to right: trivial processing (the logarithm of attenuation), per-frame dynamic contrast (ACE-S applied independently to each coming frame), ACE-D processing.
SEE FULL-SIZE SCREENSHOTS:

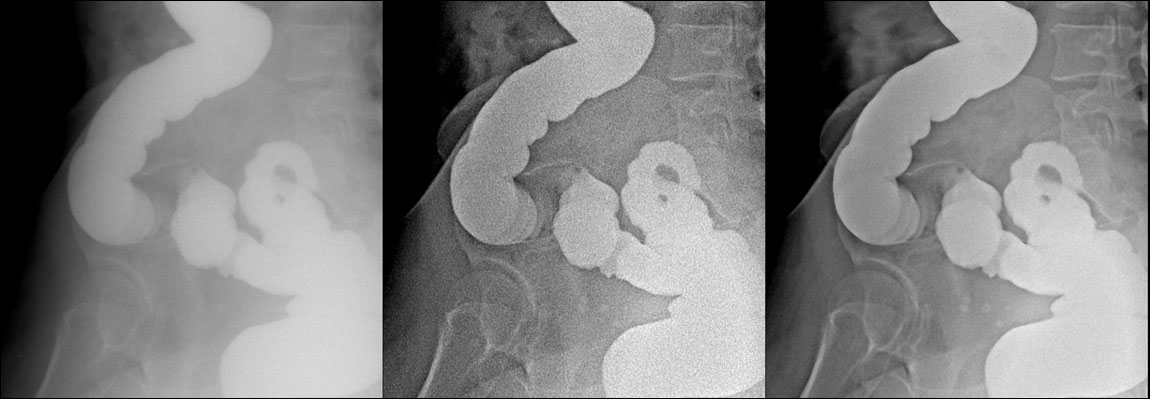

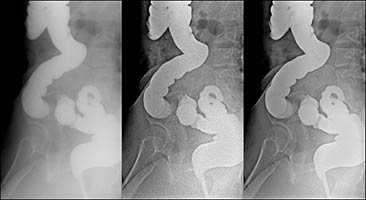

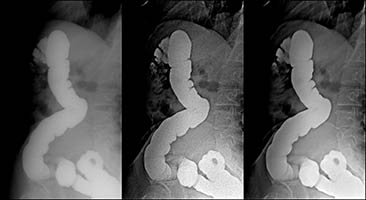

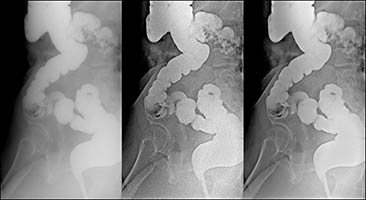

Fluoroscopy contrast study containing lateral view of the human abdomen. Initial frame rate was reduced to 4FPS for more detailed display and method quality evaluation. Left to right: trivial processing (the logarithm of attenuation), per-frame dynamic contrast (ACE-S applied independently to each coming frame), ACE-D processing.
SEE FULL-SIZE SCREENSHOTS:

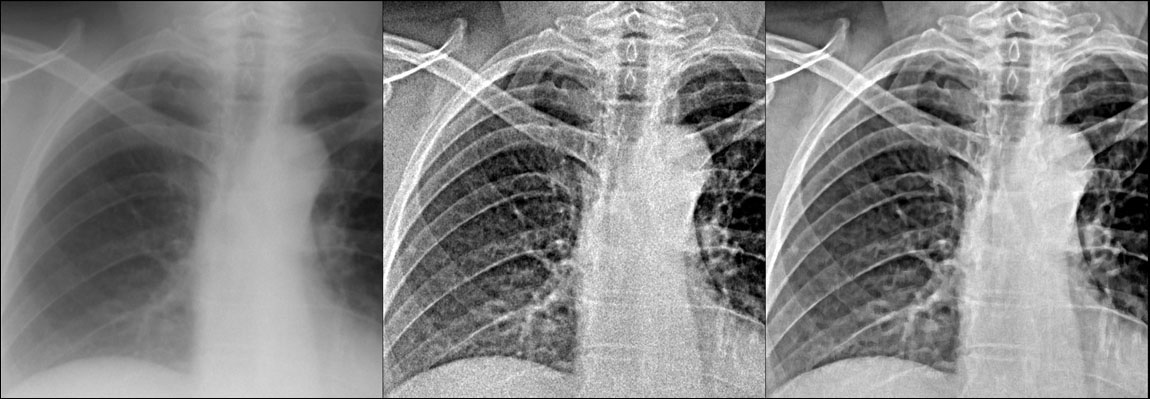

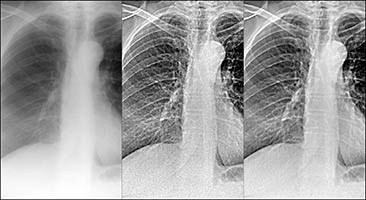

Fluoroscopy study containing view of the human thorax. Initial frame rate was reduced to 4FPS for more detailed display and method quality evaluation. Left to right: trivial processing (the logarithm of attenuation), per-frame dynamic contrast (ACE-S applied independently to each coming frame), ACE-D processing.
