PORTABLE X-RAY TOMOSYNTHESIS SYSTEM FOR EQUINE APPLICATIONSBASED ON ORIMTECH ACE/AVRG TECHNOLOGY
STAY IN FOCUS ON THE ANATOMY DETAILS OF YOUR REAL INTEREST

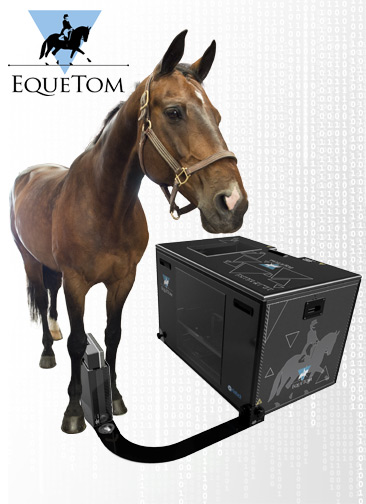

EqueTom™ is a system using the tomosynthesis imaging technology developed for the equine market. It offers high quality low-dose multi-slice images to visualize the parts of the objects that are invisible by the conventional 2D radiography.Unique reconstruction technique provides about 240 coronal slices of the examined body part for detailed examination, instead of a single static X-Ray. EqueTom™ is designed to be portable. It can be carried between stables and work the same routine as with digital radiography systems with in addition the ability to acquire tomosynthesis slices of horse leg. EqueTom™ is battery powered. Due to superior battery capacity it can make up to 50 tomosynthesis exams and 100 radiography shots.For the body-parts where tomosynthesis is not applicable the portable generator and digital detector can be removed and take radiography shots. Full PACS / DICOM compatibility
Below 3 seconds images acquisition technique in tomosynthesis mode and ~1-minute 3D reconstruction time provide fast and accurate diagnostic information. Focus at different depth inside the body via swiping the slices using our user-friendly graphic interface on your laptop.Scanable anatomy (tomosynthesis): Heel, Pastern, Ergot, Cannon, Carpus, Hoof, Coronet, Fetlock, Hock, Teeth, Sinuses, TMJ Scanable anatomy (radiography): all body-parts. Radiography resolution 125 μmGenerator type: battery powered high-frequency 1.6 kW.Acquisition frame rate of up to 35 frames per second and tomosynthesis angles about ±15°.Spatial resolution within slice: 300 μm. Slice thickness (pitch): 0.5-8 mm

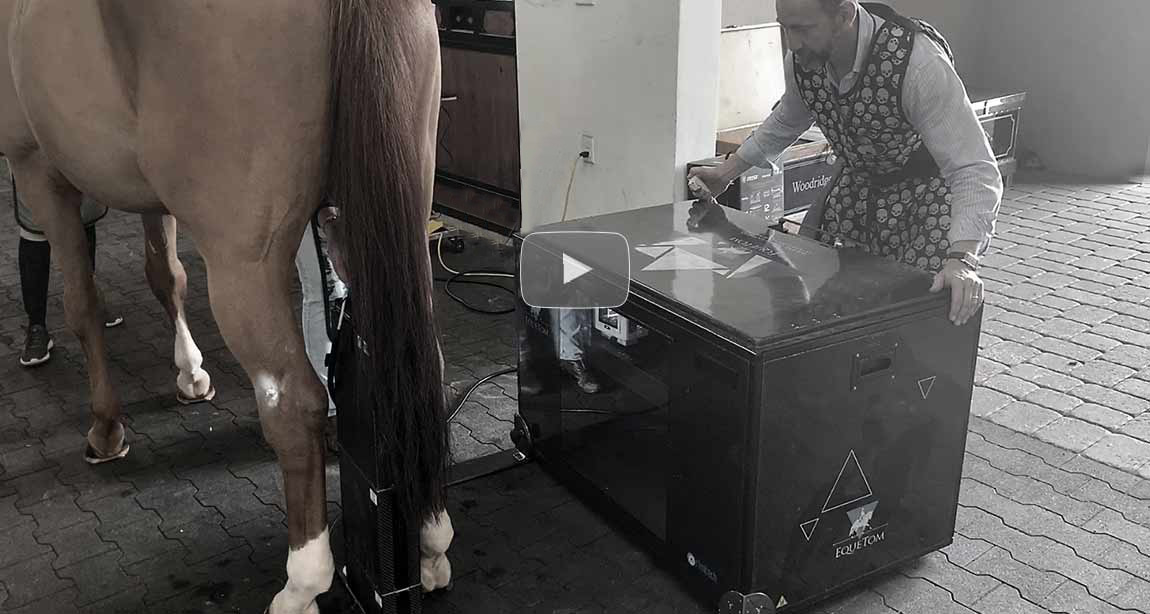

EqueTom Examination

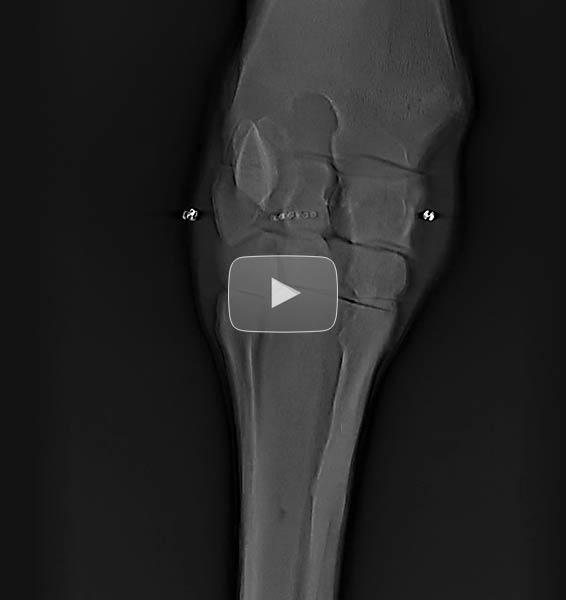

Anterior tomosynthesys scan

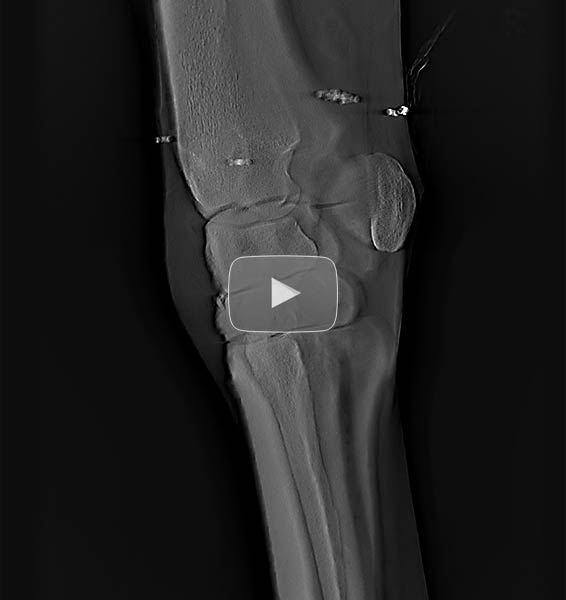

Lateral tomosynthesys scan
